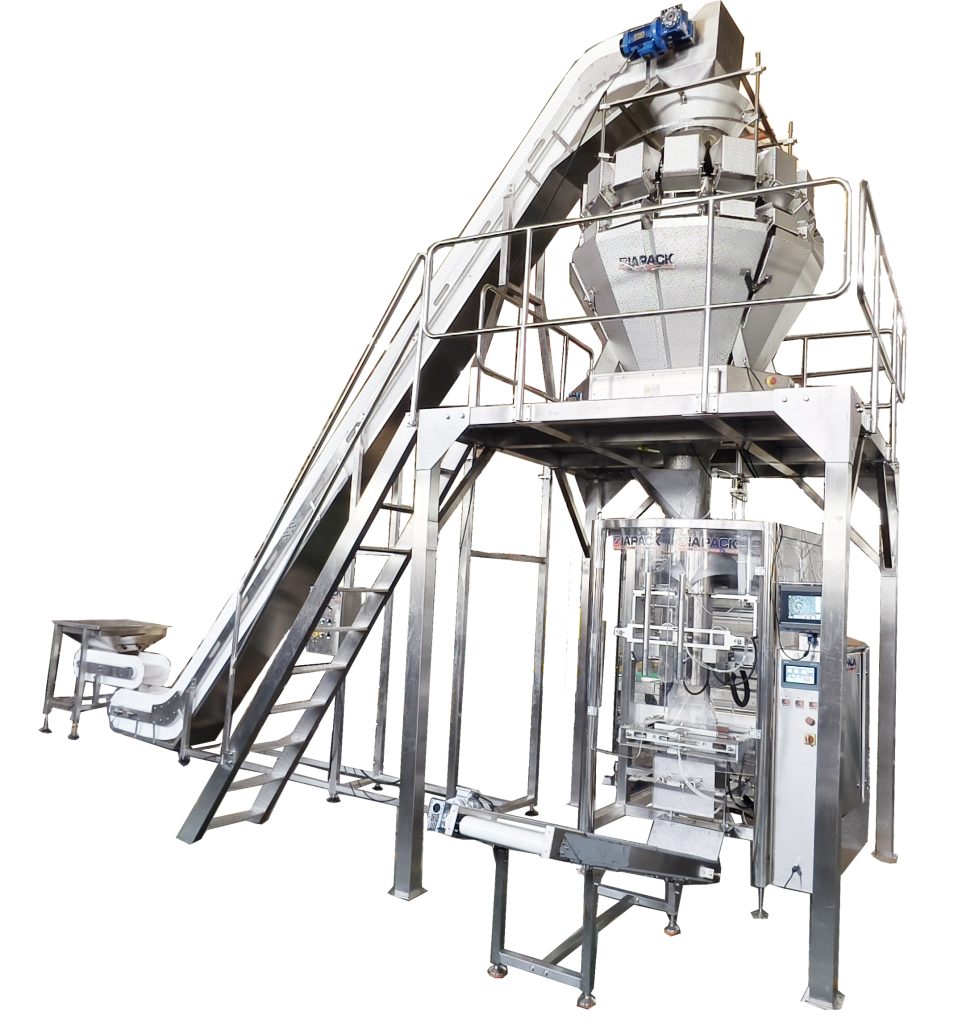

This unit machine is special design for packaging various vegetable like White radish, cucumber, lettuce, cabbage in to plastic bag .The whole machine have the function of automatic product feeding ,weighing ,film bag forming ,bag sealing ,Including date coding ,bag counting .The finished bag is output from conveyor machine which no need manual collect the bag and avoid the bag polluting .
Դիմում.

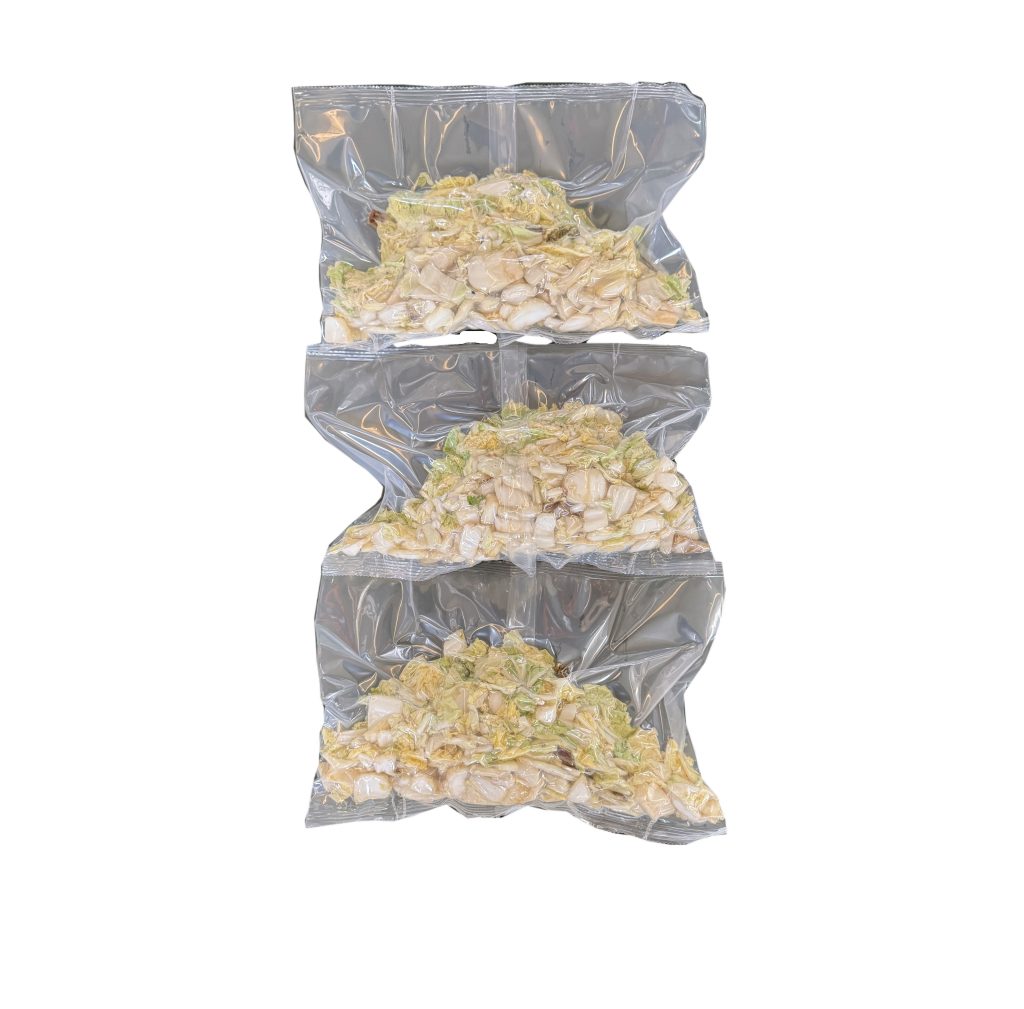

It is suitable for quantitative weighing of large target weight or large volume materials such as vegetable salad, fruit salad, potatoes, onions, tomatoes, cherry tomatoes and other vegetables and fruits.
Հատկություններ:
- Special load cell with high precision and high standard.
- Program recovery function can reduce operation failures, support multi-segment weight calibration.
- No products auto pause function can improve weighing stability and accuracy.
- Linear amplitude can be adjusted independently, can make the feeding more uniform.
- 15 languages available for global markets.
- 100 programs capacity can meet various weighing requirement, user-friendly help menu in touch screen contributes to easy operation.
Ներածություն:
Այս մեքենան կարող է ավտոմատ կերպով իրականացնել պայուսակների պատրաստման, լցման, կնքման, տպագրության, կտրելու և այլնի գործառույթները:
Այս փաթեթավորման մեքենան ընդունում է ներմուծվող սերվո շարժիչը ֆիլմերի սնուցման համար, իսկ մարդ-մեքենա ինտերֆեյսը օգտագործում է առաջադեմ սենսորային էկրան: Գործողությունը ավելի պարզ և հարմար է: Բոլոր բաղադրիչներն ընդունում են միջազգային հանրահայտ ապրանքանիշը, PLC-ն SIEMENS է, servo շարժիչը PANASONIC է, սենսորային էկրանը SIEMENS է, բալոնը և օդային փականը SMC է: մասերը, որոնք շփվում են նյութի հետ, հսկիչ պահարան, հիմնական շրջանակը պատրաստված են չժանգոտվող պողպատից304
Տեխնիկական պարամետրեր.
| Մոդել | ZL780 |
| Forming bag type | Pillow bag/gusseted bag |
| Պայուսակ երկարությունը | 150-480mm by secondary film pulling the bag length can be longer |
| Պայուսակի լայնությունը | 120-375mm(Side width +front width ) |
| Ֆիլմերի լայնությունը | ≤780mm |
| Bag forming speed | 5-15bag/min |
| Air source consumption | 0.8MPa 0.45m3/min |
| Max outer diameter of reel | ¢400mm |
| Core inner dia | ¢75mm |
| Ուժ | 6KW 380V±10% 50Hz |
| Մեքենայի չափը | 1650*1500*1750mm |
| Մեքենայի քաշը | 650 կգ |
